通信面板接線端子

P/N:BP-52-14-0210 Black
       BP-52-14-0212 Red

● Bindling Post: Black / Red

● Accepts Wire Size: 0.925” (2.35mm) diameter

● Cap mounts in 0.313” (8mm) hole

● Mounts in panels from 0.0625” to 0.125”    (1.6~3.2mm) thick

● Brass with Nickel Plated and Rubber Cap

● Current Rating: 15A / 125VAC

● Temperature:-10 ~ +110℃

P/N:BP-36-12-0210 Black
       BP-36-12-0212 Red

● Bindling Post: Black / Red

● Accepts Wire Size: 0.79” (2.0mm) diameter

● Cap mounts in 0.146” (3.7mm) hole

● Mounts in panels from 0.039” to 0.079”    (1.0~2.0mm) thick

● Brass with Nickel Plated and Rubber Cap

● Current Rating: 10A / 125VAC

● Temperature:-10 ~ +110℃

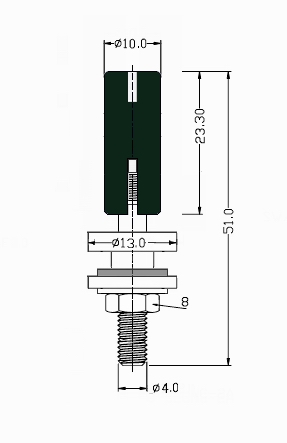

P/N: BP-52-10-0114

Binding Post / Green
Cap mounts in 0.157” (4.0mm)
hole in panels from 0.0625” to
0.125” (1.6~3.2mm) thick
