		VHF174-240 MHz

		AN1724-49	Technical Specification
			Frequency : 174 – 240 MHz V.S.W.R. : ≦ 3.0 Gain : related to cable length Cable : RG-174 / 1.5C-2V / 3C-2V Application: PAL(IEC) / F / MCX / SMA Dimension : H680 x Dia . 30 (mm)

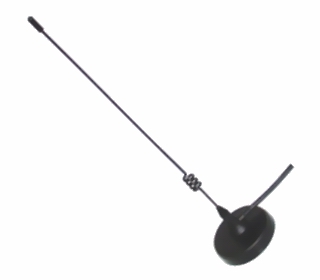

		AN1724-62	Technical Specification
			Frequency : 174 – 240 MHz V.S.W.R. : ≦ 3.0 Gain : related to cable length Cable : RG-174 / 1.5C-2V / 3C-2V Application: PAL(IEC) / F / MCX / SMA Dimension : H685 x Dia . 69 (mm)

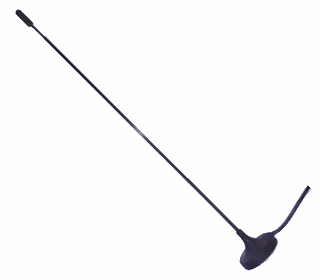

		AN1724-98	Technical Specification
			Frequency : 174 – 240 MHz V.S.W.R. : ≦ 3.0 Gain : related to cable length Cable : RG-174 / 1.5C-2V / 3C-2V Application: PAL(IEC) / F / MCX / SMA Dimension : H676 x Dia . 34 (mm)

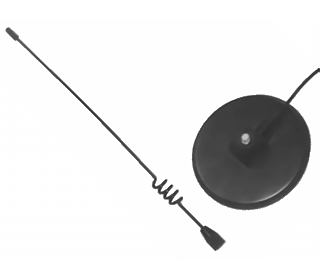

		AN1724-65	Technical Specification


		AN1724-40	Technical Specification
			AN1724-40 Frequency : 174 – 240 MH V.S.W.R. : ≦ 3.0 Gain : related to cable length Cable : RG-174 / 1.5C-2V / 3C-2V Application: PAL(IEC) / F / MCX / SMA Dimension : H163 x Dia . 48 (mm)
