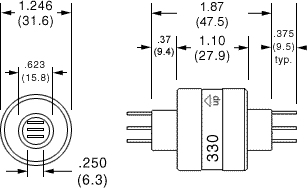

330/330-SS*

˙Disconnects included (6 lg.)
˙Boot kit available
˙Available with stainless steel ball bearings (330-SS)

Specifications

Model

number

Conductors

Voltage

range
AC/DC

Current rating
@240VAC
(amp.)

Max. freq.
(MHz)

Contact Resist.

Max.
RPM

Operating temperature°F (°C) max./ °F (°C) min.

Rotation
torque
(gm-cm)

Circuit
Sep.

330

3

0-250

30

100

<1mΩ

1200

140 (60) / -20 (-29)

300

>25MΩ
