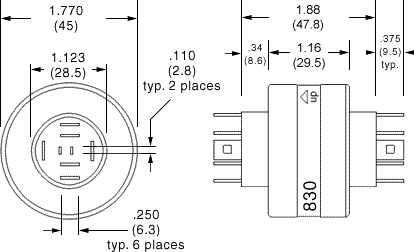

Model 830

˙Disconnects included(4 sm., 12 lg.)
˙Boot kit available
˙Available with

     stainless steel ball bearings (830-SS)

830/830-SS*

Specifications

Model

number

Conductors

Voltage

range
AC/DC

Current rating
@240VAC
(amp.)

Max. freq.
(MHz)

Contact Resist.

Max.
RPM

Operating temperature°F (°C) max./ °F (°C) min.

Rotation
torque
(gm-cm)

Circuit
Sep.

830

8

0-250

4/30**

100

<1mΩ

200

140 (60) / -20 (-29)

1000

>25MΩ
